Art in Space, Expansive Views from Narrow Frames

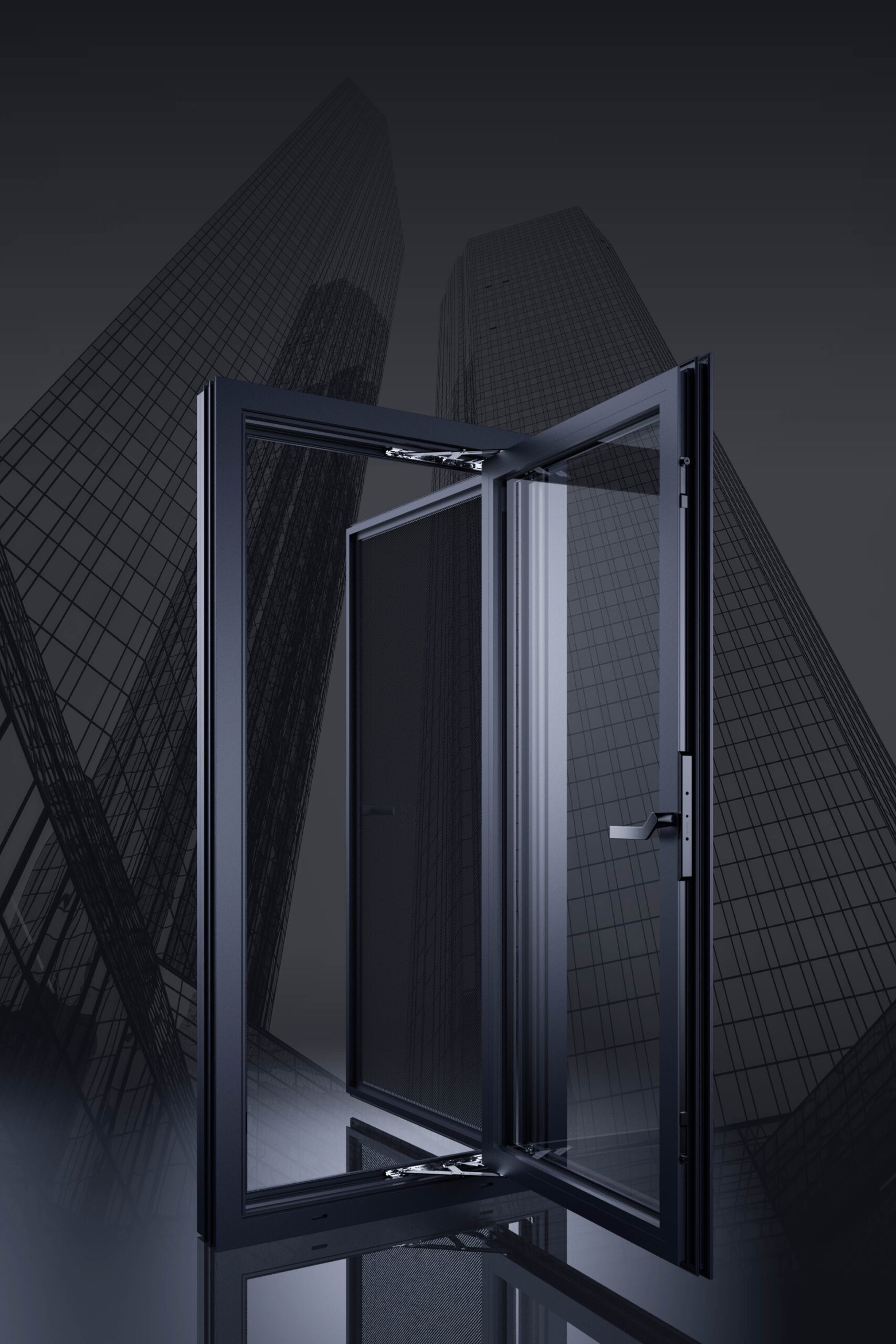

Our Narrow Frame Outward Opening Window System is engineered to maximize your view and enhance your connection with the outdoors. It embodies our commitment to delivering exceptional visual experiences and practical design.
Performance Highlights:
Water Tightness: 700Pa
Air Tightness: Level 8
Wind Resistance: 5000Pa
Durability: Over 30,000 cycles of repeated use without sagging
Discover the meticulous craftsmanship of CMECH windows, where every detail is designed to deliver superior performance and reliability.
The narrow-edge, built-in outward opening system, coupled with high-performance profiles and hardware systems, as well as other accessories, makes for an excellent door and window system solution that meets the high standards required for windows.
The Advantages Of A Built-In Slot
The built-in slot effectively protects door and window hardware, extending hardware life, improving drainage and waterproofing capabilities, reducing dust and debris accumulation, and lowering maintenance costs.

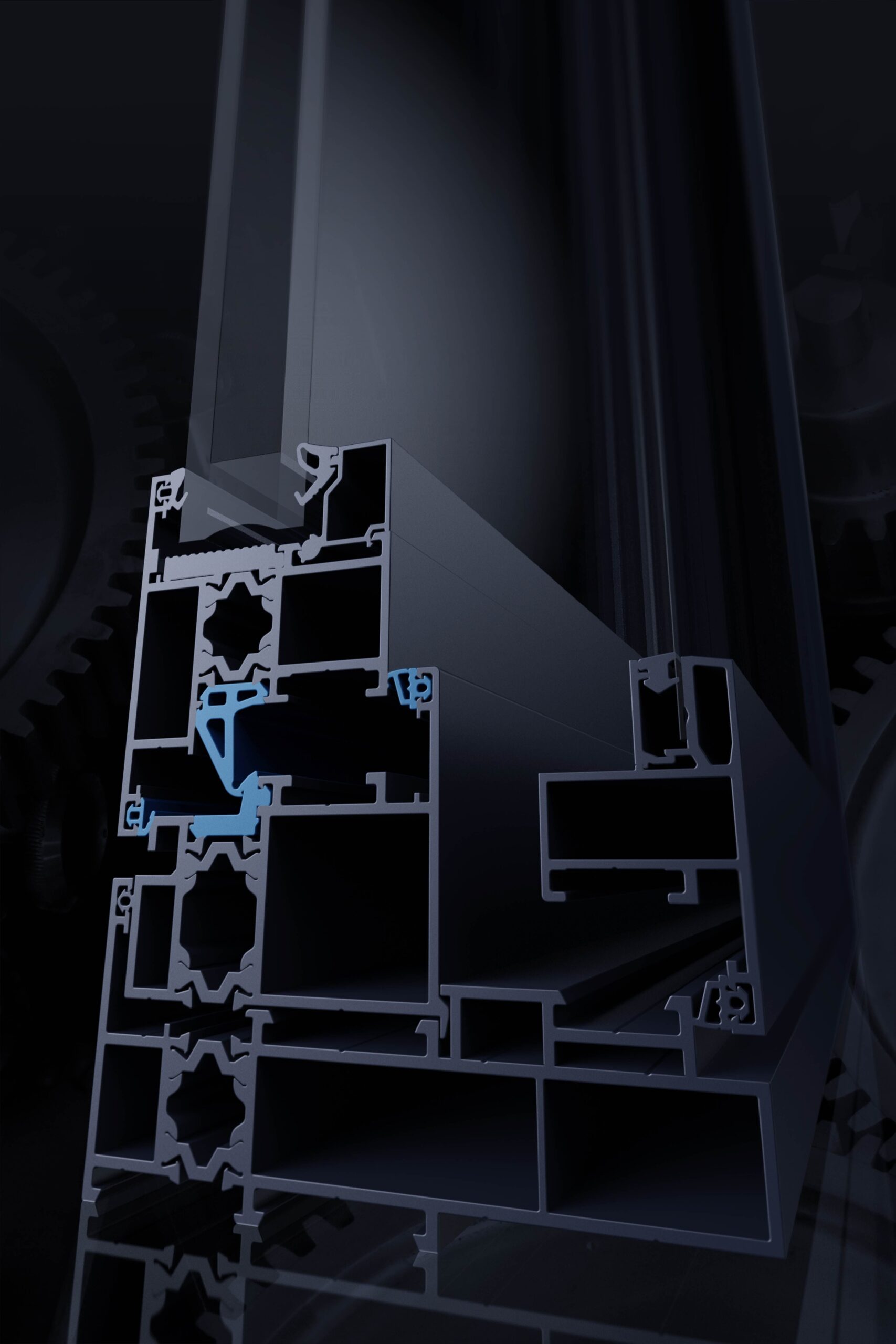

Real-Fit Profiles, Excellent Sealing
Using a real-fit profile design, the frame and sash adopt triple sealing and isobaric sealing technology to ensure excellent sealing performance.

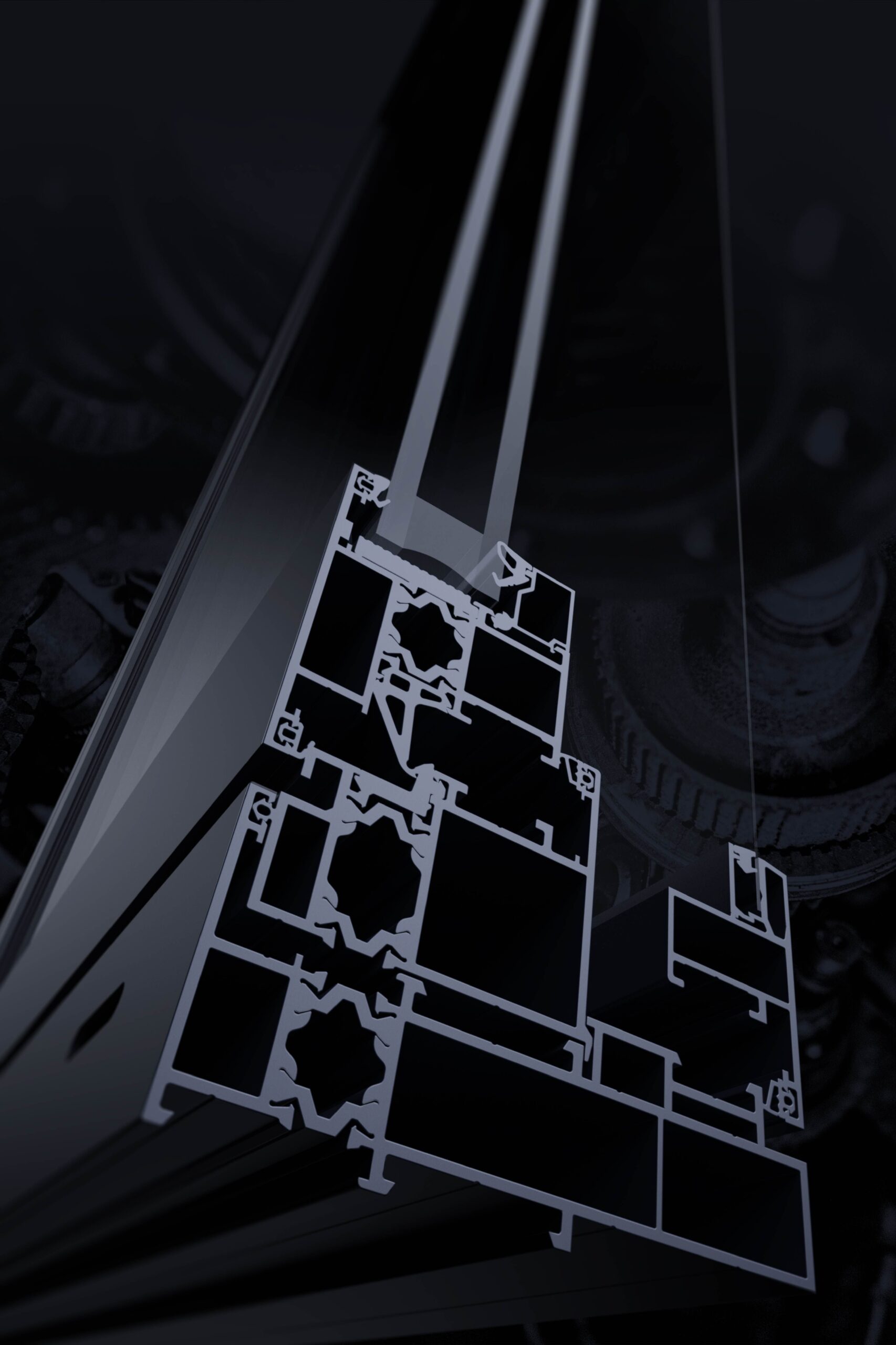

Narrow Sash Structure With Superior Field Of View
The built-in slot strut narrow sash structure design, with a glass visible surface of 70mm, provides a better field of view.

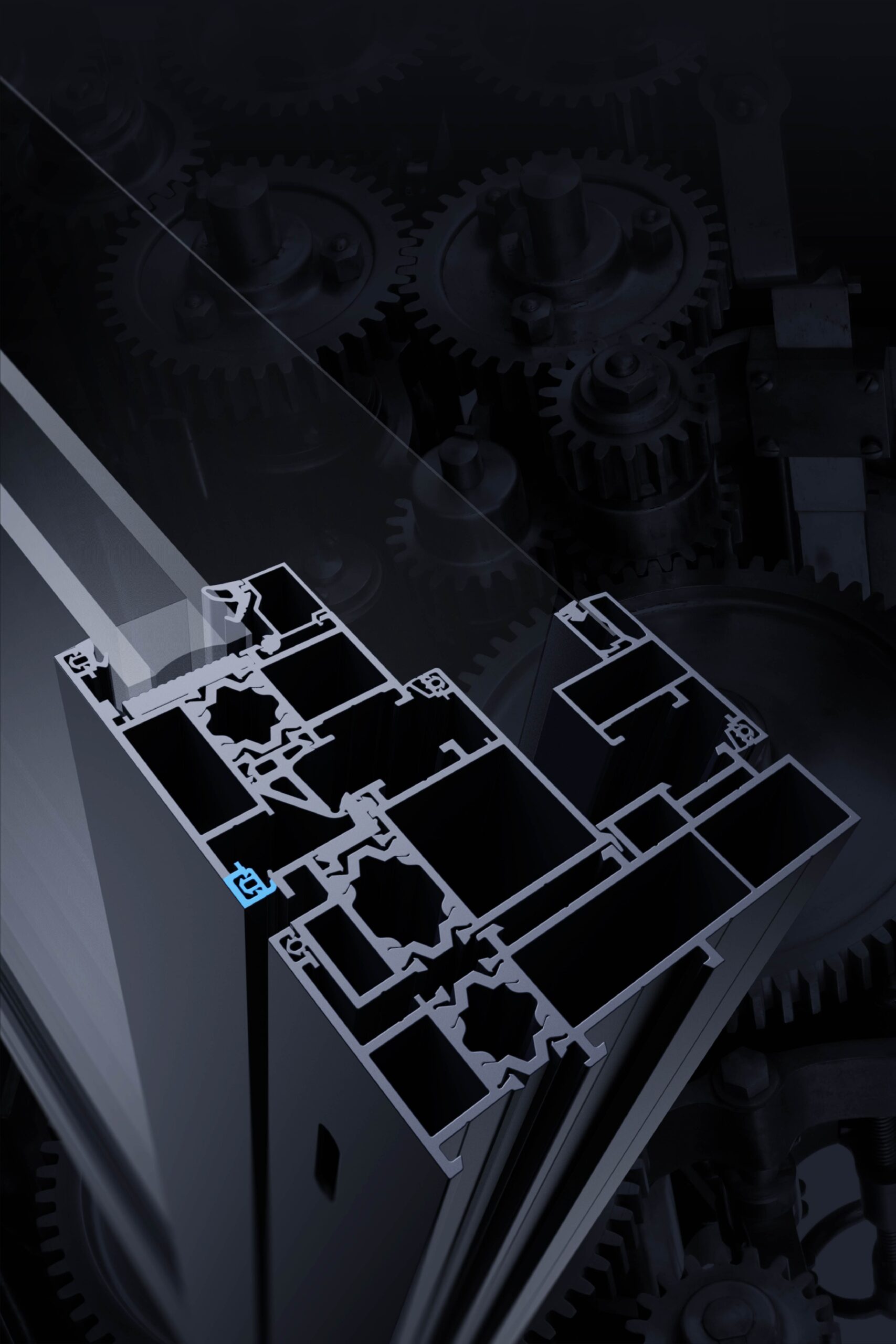

Good Indoor And Outdoor Thermal Insulation
Has excellent thermal insulation performance, helps to reduce energy consumption, and effectively prevents the formation of condensation.
Efficient Drainage
Ensures rapid removal of outdoor water, no water leakage indoors, and effectively prevents hardware from rusting and dampness.

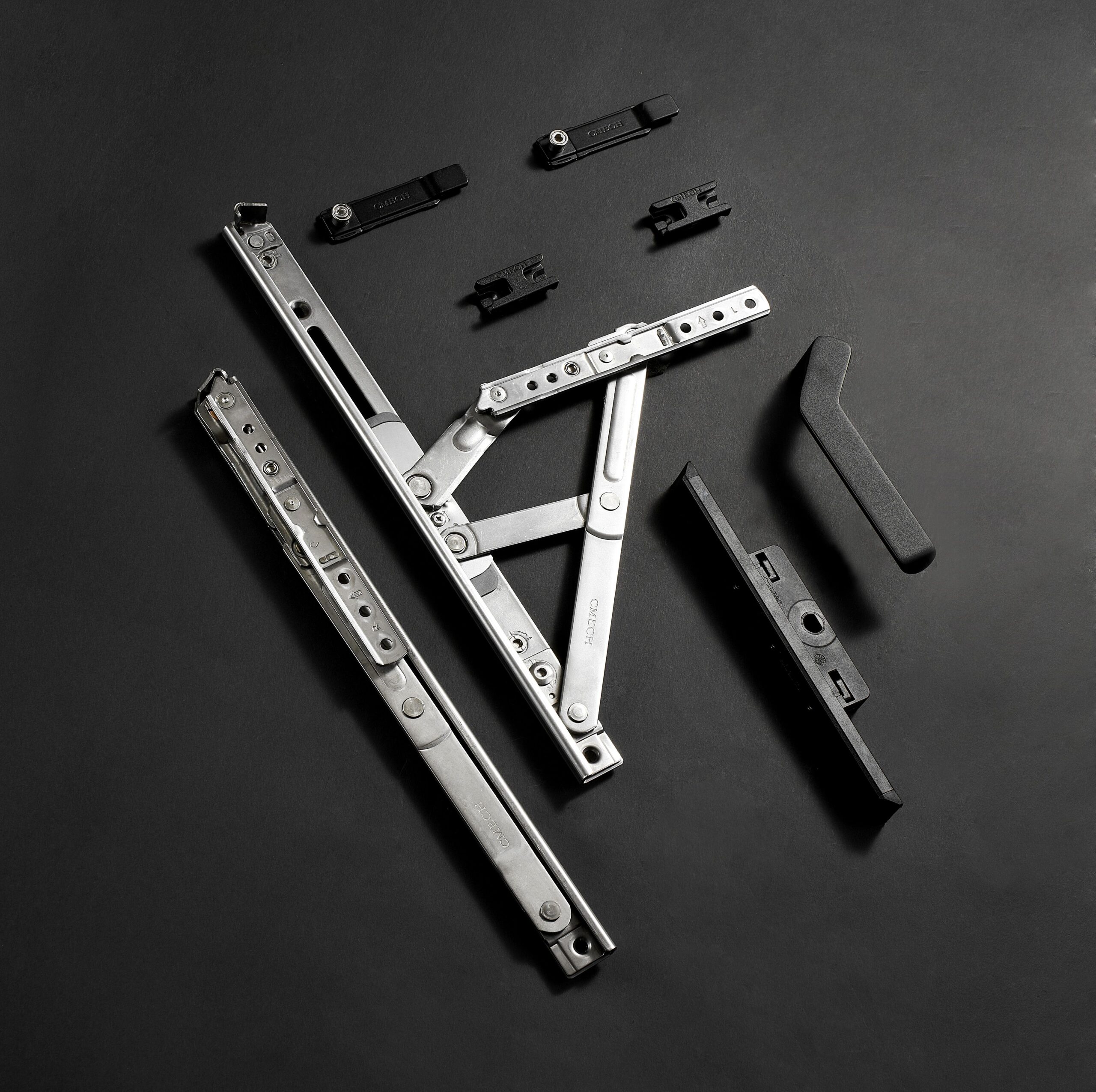

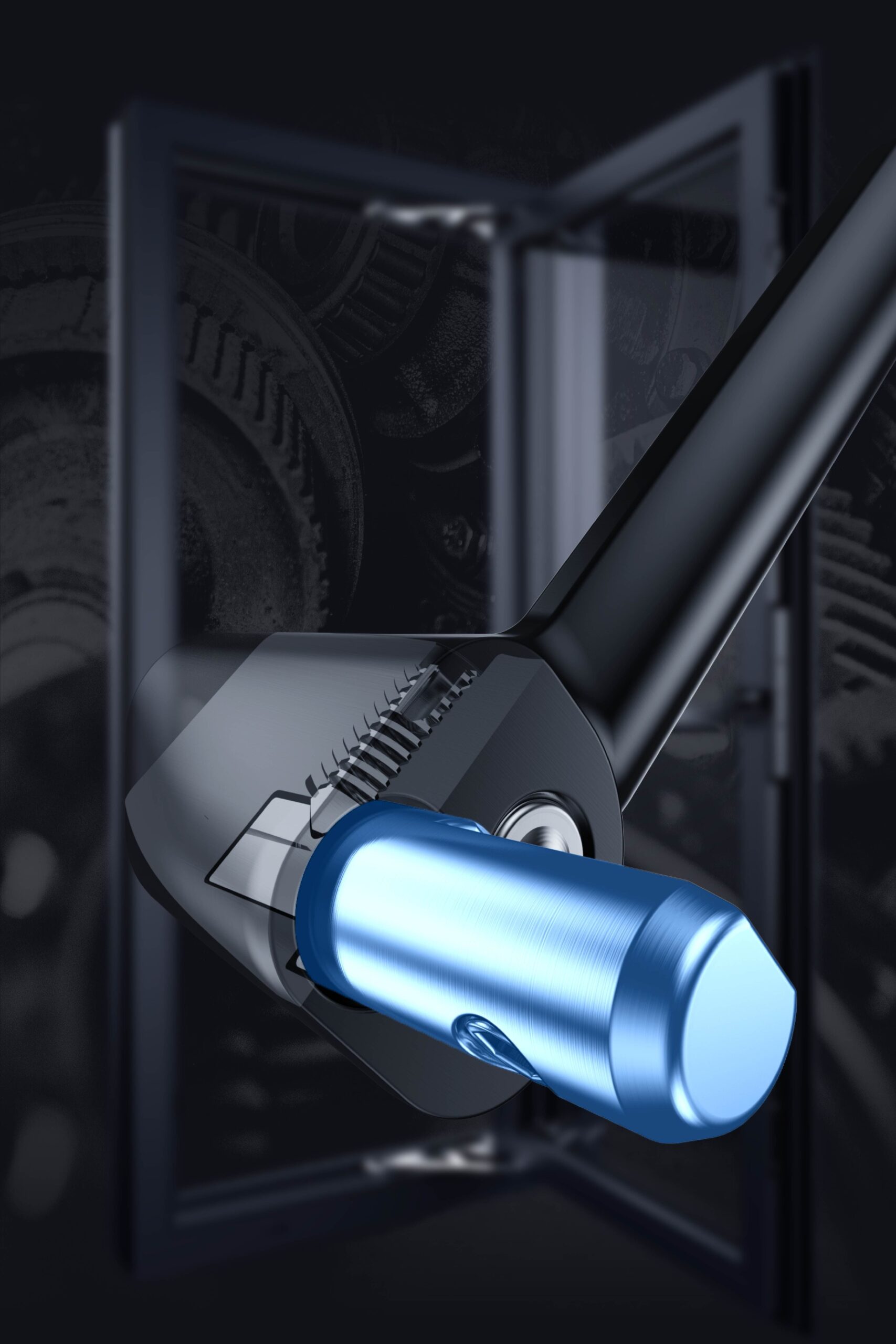

Stable And Secure Handle
The handle uses a high-hardness steel solid special-shaped shaft for greater strength and to prevent incorrect installation. The stainless steel set screw is designed with a recessed groove for a more secure and stable installation.

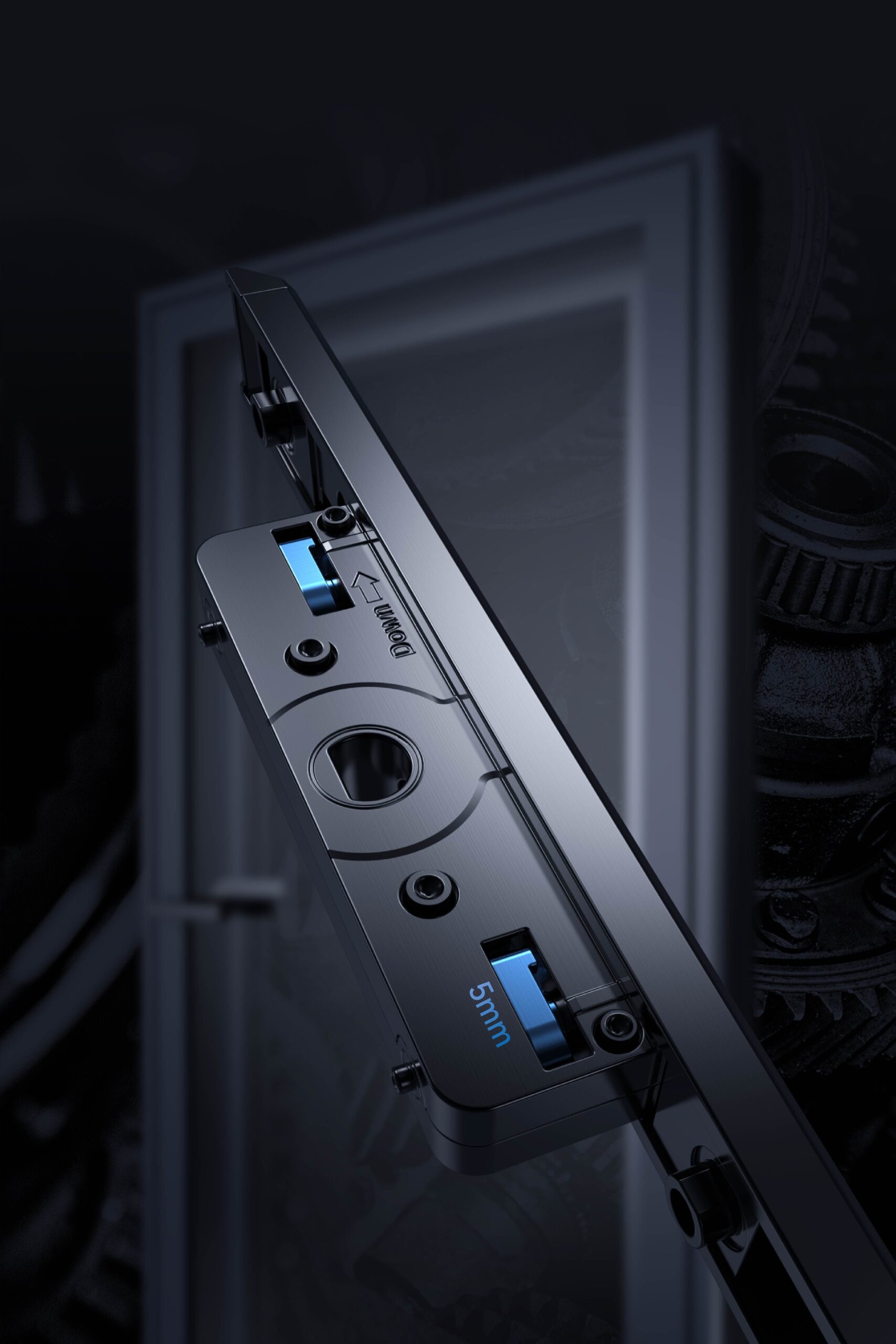

Actuator Innovative Design
Uses an industry-innovative clamping method, with clamping points close to the central distance, providing excellent anti-offset effects. The clamping block adopts a 4mm thickened design for greater strength.

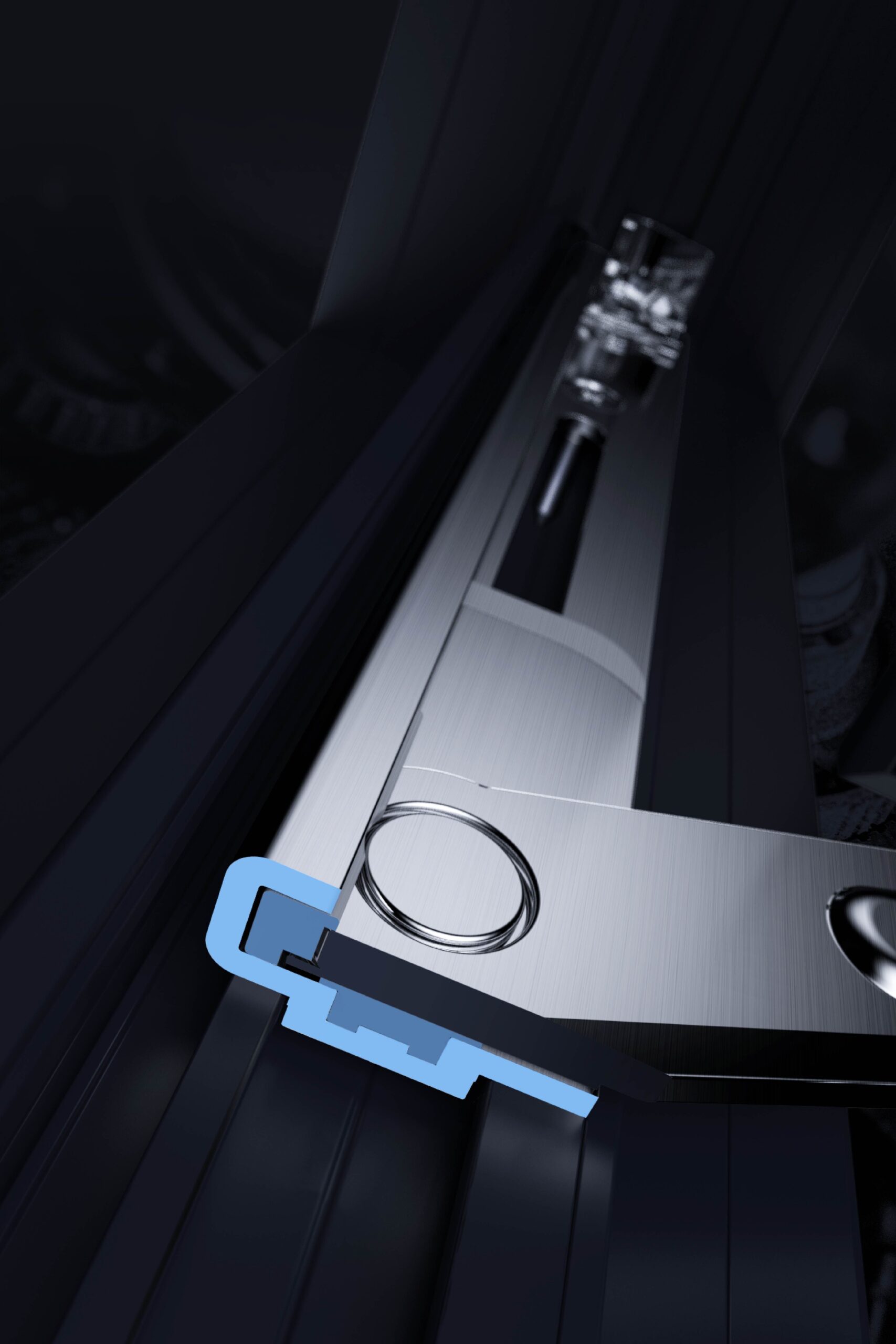

Built-In Hinge Patented Design
The hinge features a U-shaped bending design that reinforces the installation plate and a patented anti-sagging structure, effectively preventing the installation plate from warping and the window sash from sagging. Six solid rivets can withstand higher radial tensile forces, enhancing durability and safety. It is equipped with a left-right adjustment mechanism, making it convenient and quick to adjust the gap between the frame and the sash.
Built-In Hinge
After the hinge is installed, the window can intake air from both left and right sides, allowing one to comfortably enjoy dual views and convenient cleaning. The use of nylon and stainless steel combination sliders ensures stable and smooth opening and closing, contributing to a quiet and peaceful experience.
